Description
FMS-650MA Simple
Digital Medical X-Ray Radiology System
Multiple
Multifunctional floor mounted system with the wireless flat panel detector detector,it supplies you a comprehensive, cost-effective, space saving solution.
Excellent
Large view wireless flat panel detector optimizes the diagnosis accuracy by the excellent image
quality with fast acquiring speed and unlock the value of existed general x-ray system.
Compact
Compact system offers stress-free flexible positioning experience, greatly improve the efficiency of the workflow. All movement manual operation available.
Humanized
All free rotation of x-ray tube arm and tube stand integrate with the wide range tabletop movement would assist the radiographers to operate smartly. Various examinations can be done easily and smoothly.X-ray tube arm swivel capability supports stretcher or wheelchair examination.
Advanced Flat Panel Detector Excellent Clinical Images
- 17*17/14*17(Wireless FPD)
- 3072*3072(Static Pixel Matrix)
- 9.4million(Pixel)
Specific Clinic Positions
Outstanding Clinic Imaging

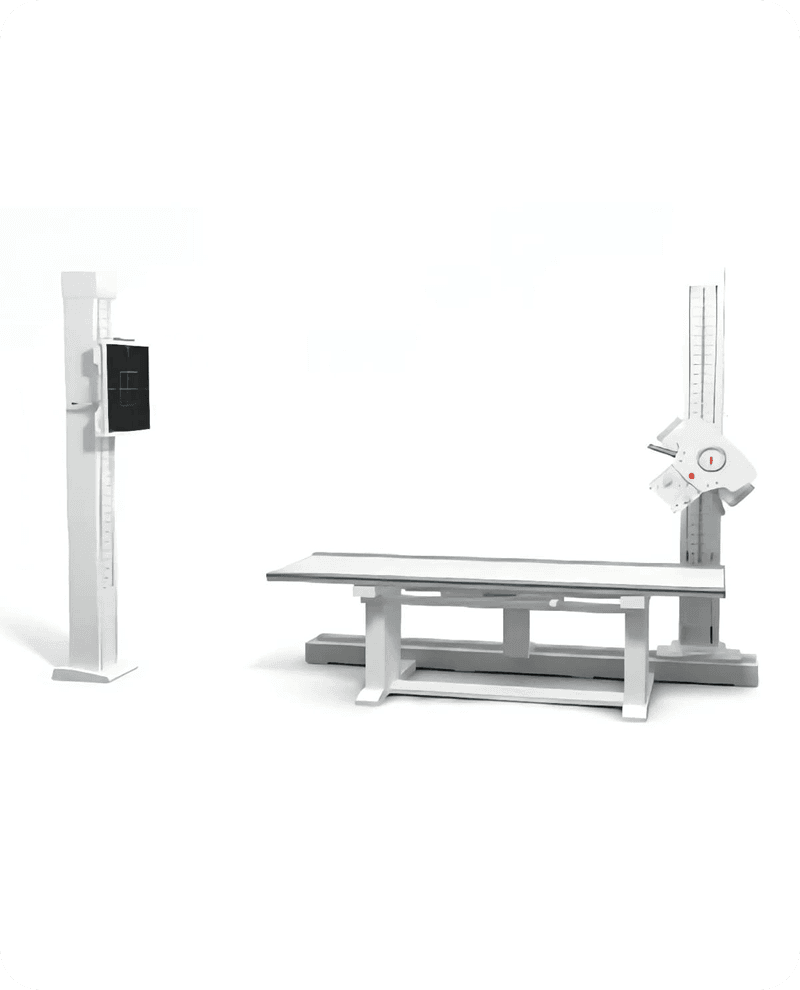

Floor Mounted System
Bucky stand
- Vertical movement: 400-1850mm
- Vertical movement: Manual operate with hand brake
- Installation Dimension: 550×354.5×2179.5
- Weight: 80kg
Diagnosis Table
- Table size: 2000x750x650mm (LxWxH)
- Weight: 120kg
- Table load: ≥200KG
- Tabletop movement: Four-way floating, manual
- Table floating longitudinal movement: 700mm
- Table floating transverse movement: 240mm
- X-ray tube column longitudinal movement: 1800mm
- X-ray tube column rotation range: ±180°
- X-ray tube axial rotation range: ±180°
- Cassette longitudinal movement under table: 510mm
- Vertical movement of x-tube: 450-1850mm
- Installation Dimension of Tube and rail: 2280x900x2200mm (LxWxH)
- Weight of Tube and rail: 240kg
- Grid Ratio: 10:1
- Grid Focus: 1000mm
- Grid Density: 40lp/cm
