FNX-A100MA-3

FNX-100MA-2 is a high frequency mobile flat-panel digital X-ray radiography system,suitable for radiology department, orthopedics, ward, emergency room, operatingroom,ICU and other departments. With flexible movement, easy operation, high efficiency, tomeet the radiography for all of human body’s parts, such as head, limbs, chest, spine,lumbar vertebrae, abdomen, etc.

Product Usage

Product Specification

1. Generator output: 5.0 kW
2. kV range: 40 kV – 120 kV in 1kv steps
3. mA range: 25~100 mA ，180mAs
4. Exposure time: 4 films per min, less than 20 ms per film
5. X-ray tube: Stationary anode tube with a focal spot of 0.3*1.5 mm6. Collimator: Bright field light beam collimator with 120 W halogen lamp and autoshut-off facility.
7. Power requirements: Single phase 220 V +/- 10% -240 V +/- 10% Voltage tolerance;50/60 Hz power supply
8. Mobile stand: Light-weight, low height mobile and easily maneuverable stand.
9. The mobile radiographic unit also include a handheld control and a microwavewireless remote control for the 20-meter microwave remote Without the restriction ofBarriers and directional, different from the infrared remote control . Grids reduce thefog line filters and raise the degree of scattering contrast.
10. The unit is provided with a line (power) cord of acceptable durability, quality, lengthand is secured with adequate strain reliefsThe unit include, power plugs that are sufficient for the maximum voltage and currentof the unit.
11. The maximum distance from the ground: 21750mm, and minimum distance fromthe ground: <500mm. Rotating around the horizontal axis 180° , rotation around thevertical: + 90°, the collimator can rotate 180°.

1. Monoblock
* High frequency and High voltage monoblock, 27 years experiences, make sure the stability quality.* 50kHz inverter frequency, good x-ray quality, low dose, worldtop-level technology.
*Thermal capacity 500KJ, long time continuous exposing.* With digital closed loop control technology and fault alarm function
2. Exposure Controller
* Hand controller — wired exposure*Microwave controller — wireless remote, within 10 meters
3. Flat Panel Detector
* Whole-plate non-spliced, cesium iodide + amorphous silicon flat-panel detectorsderive from the world’s leading technology, which greatly improves performance.* Version Scope: 14”x 17″
* Spatial resolution: 3.3Lp/mm
* Pixel size: 140um
* Output gray scale: 16bit
4. Self Balance Function
* The support arm can stop at any positionthat’s our self balance technology, easyoperation.
5. Networked device: high quality image and output information system* The networking functions of PLX5100 include: Dicom storage, Dicom film printingDicom film transfer.
* lt has standard DICOM 3.0 interface, supporting film printing, output, storage,barrier-free docking hospital PACS system.
6. Workstaion:
Workstation model: IC12ACPU model: >i3Memory capacity: >4GBHard drive capacity: > 1 TB
7. LCD Touch screenEquip with touch screen controller,Human body graphic for parameter choice.

Description
Reviews (0)

Description

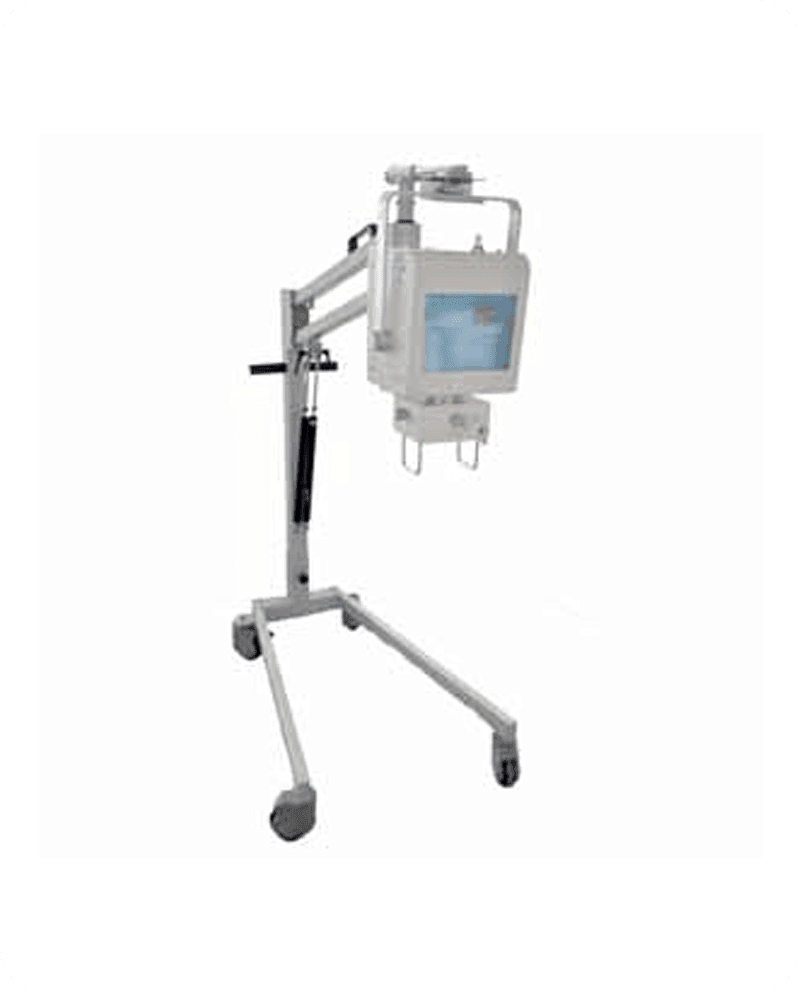

●Simple Stand design with wheels
The mobile stand is flexible and convenient to meet various position

●The suitcase can be placed on the main X-ray machine, hand switch control, remote control, you can choose different exposure control.Also it’s easy to transport and carry cos special compact structure.

It can be widely use for human limbs checking, diagnosing, especially used in hospital room, ambulance, disaster relief, emergency medical treatment, sports events, charity organizations, diagnosis etc.
● .Deft and concise
●.6 periods of digital LED display
●.Failure self-protection, self-diagnosis
●. High precision control of tube voltage, tube current
●.48 kinds of presupposed anatomy memory pattern choice
●. Accuracy control method of simulation and double digital loops
●. X-ray tube complete surrender by lead for protect X-ray leaking

●Exposure by hand switch
●Exposure by remote control
●Exposure by touch screen
