MSLEC36 High Quality ECG Machine 6 Channel Portable Ecg Machine for Hospital and Clinic
Overview – Digital Twelve Channel ECG Machine
1.7″ TFT, touch screen, LED backlight 2. Digital isolation technology and signal PRO-cessing solution, digital filter 3. Patient managment, name and age and ID. 4. Detail analysis report. 5. Multi-language options: Germany, France, Italian, Turkey, etc 6. Built-in lithium rechargeable battery, wide thermall printing system 7. USB and LAN socket. Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive 8. Auto-measurement, auto-analysis, and auto-interpretation.
Technical parameters
Standard 12 leads | Standard 12 leads |
Measurement parameters | HR, P-R interval, P-Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1) |
Patient leak current | <10µA |
Frequency response | 0.05 ~ 150Hz(-3dB) |
Time Constant: | ≥ 3.2s |
CMRR: | > 100dB |
Dimention of recording paper | 80mmx20m |
Paper speed | 25mm/s, 50mm/s |
Input Circuit: | < 50μA |
Noise Level: | ≤ 15μVp∽p |
Sensitivity valve: | 5, 10, 20mm/mV. |
Polarization Voltage: | ±300mV |
Calibration Voltage: | 1mV ±2% |
Product safety type | Class I, CF. Defibrillation and pacing protection |
Dimension | 130mm(L)¡Á 74mm(W)¡Á 25mm(H) |
NET Weight | 2.3KG |
Input Impedance: | ≥ 50 MΩ |

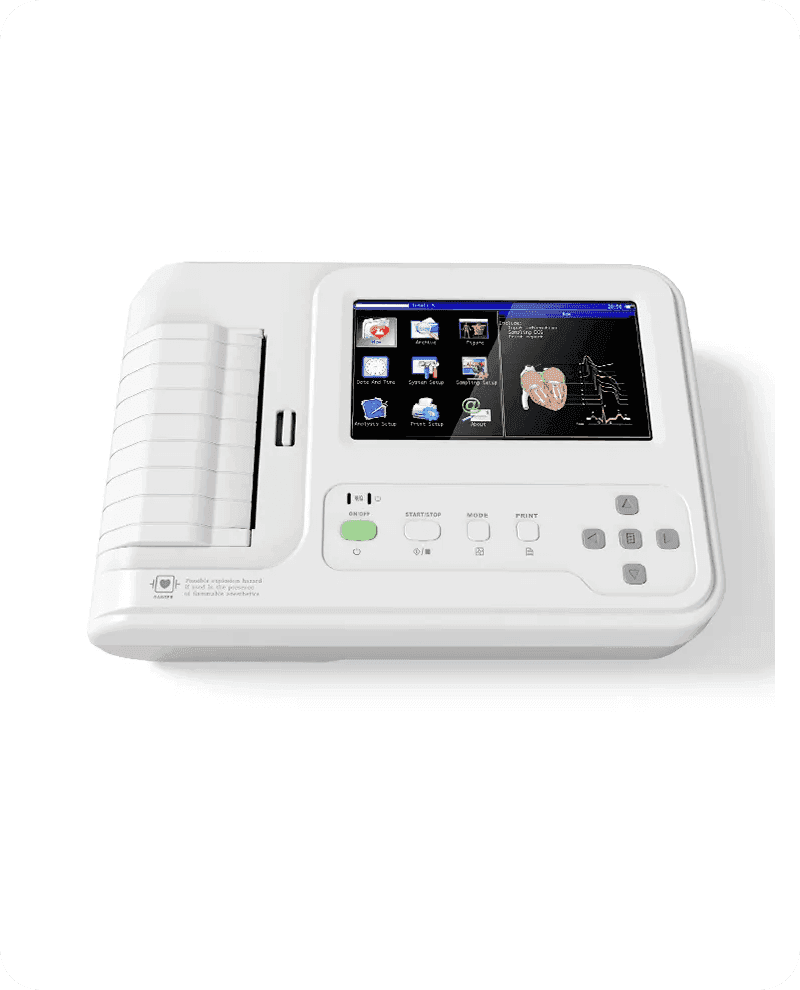

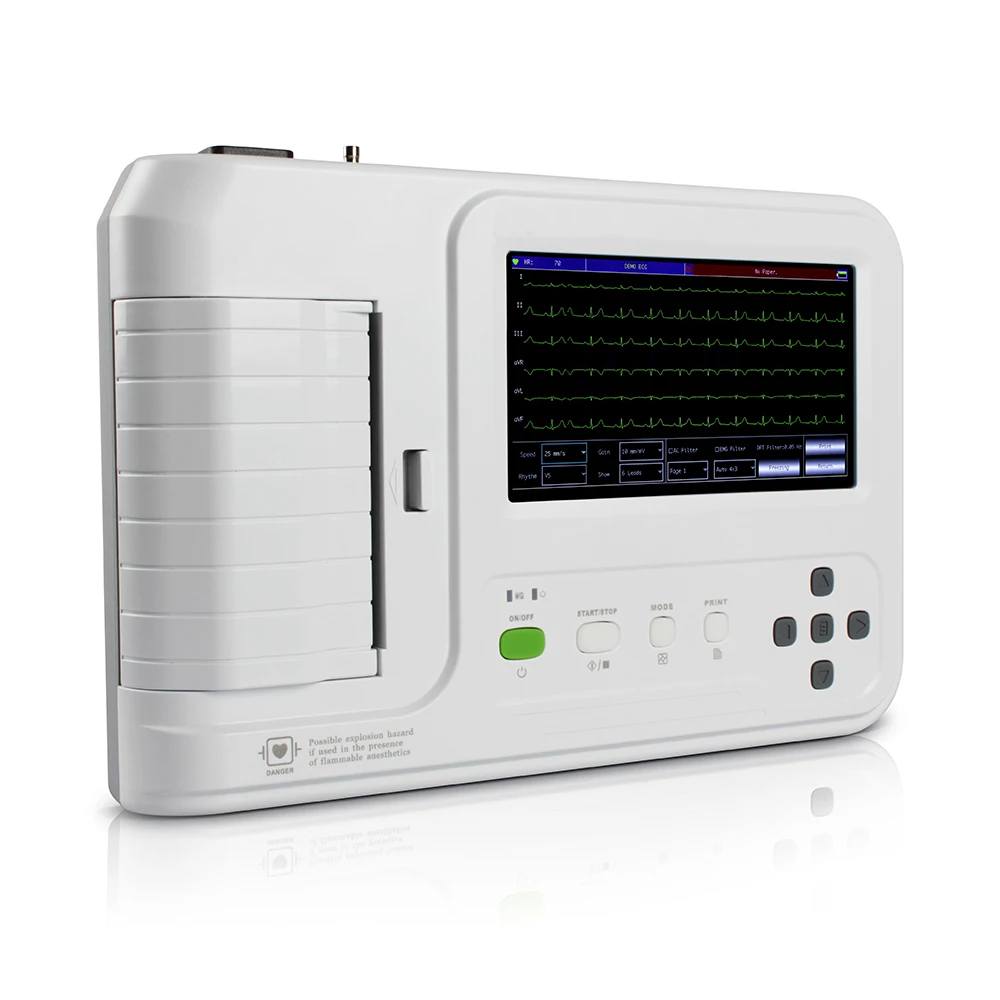

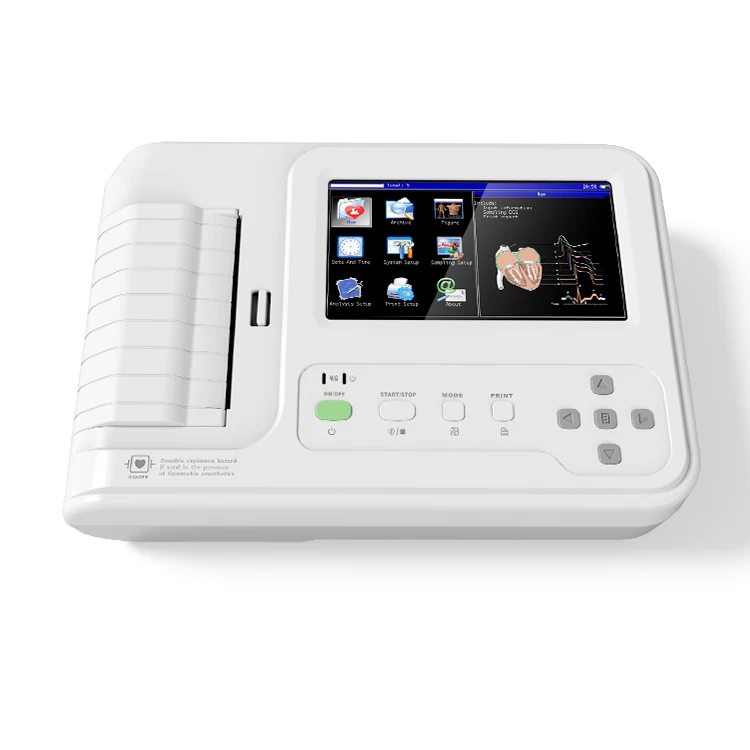

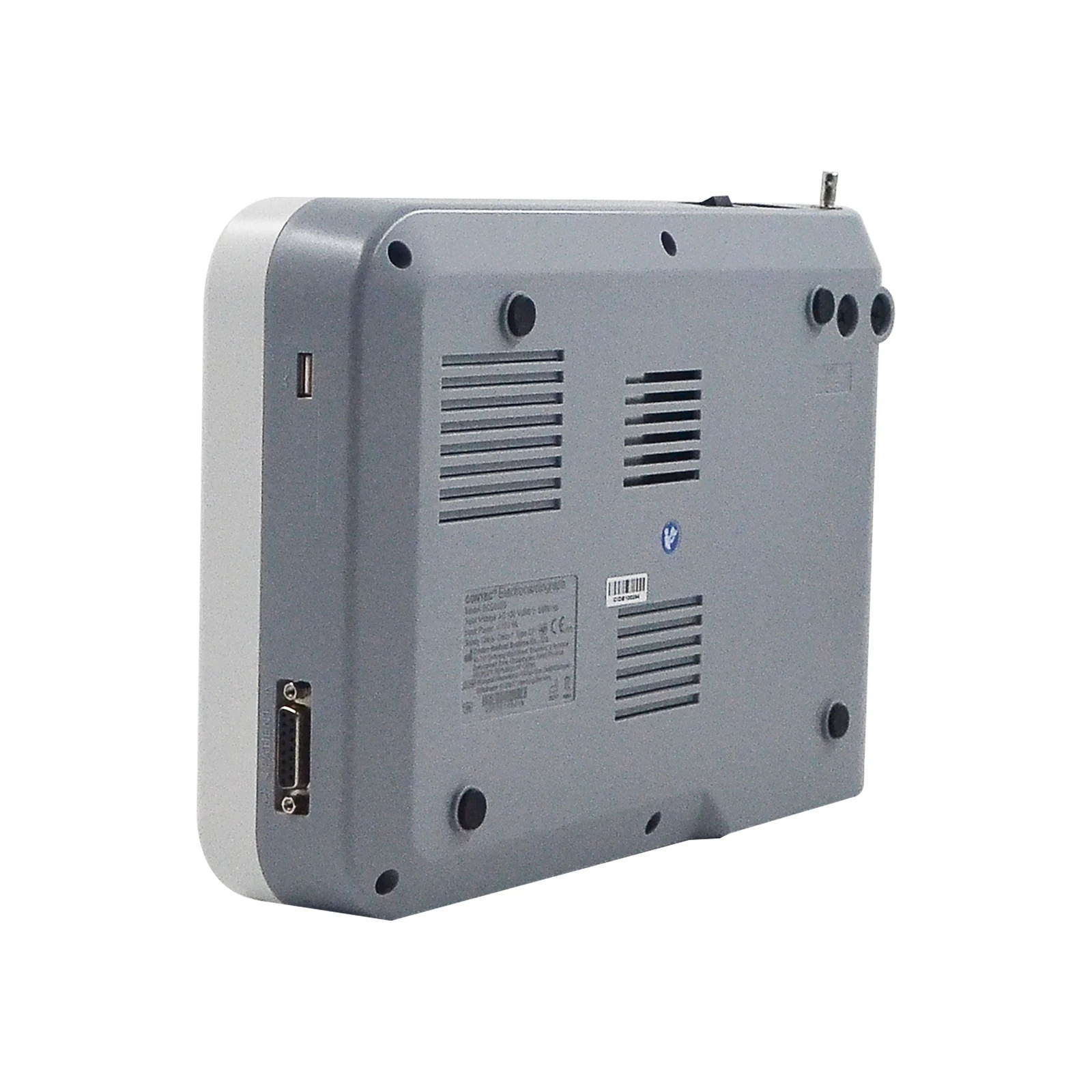

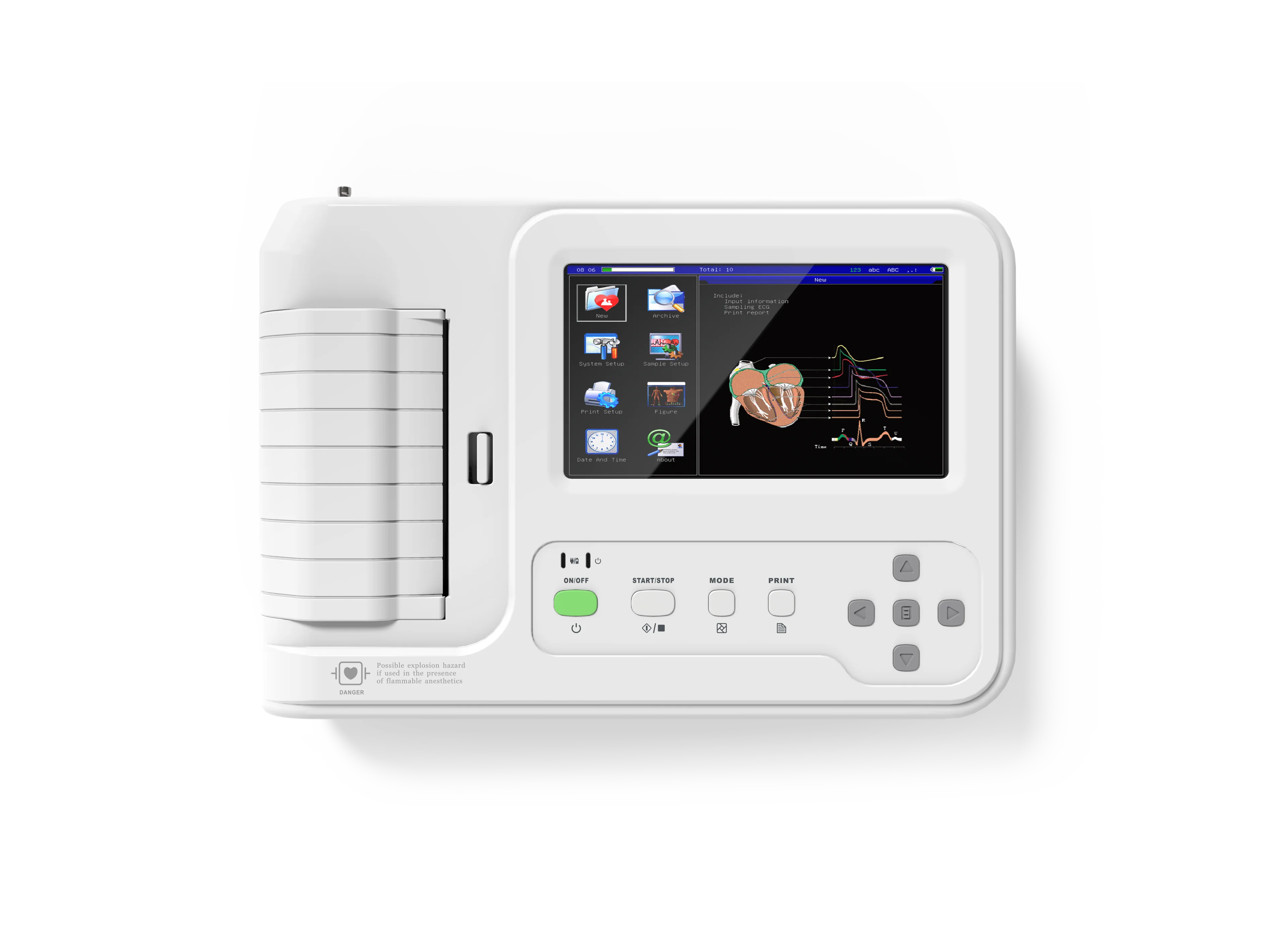

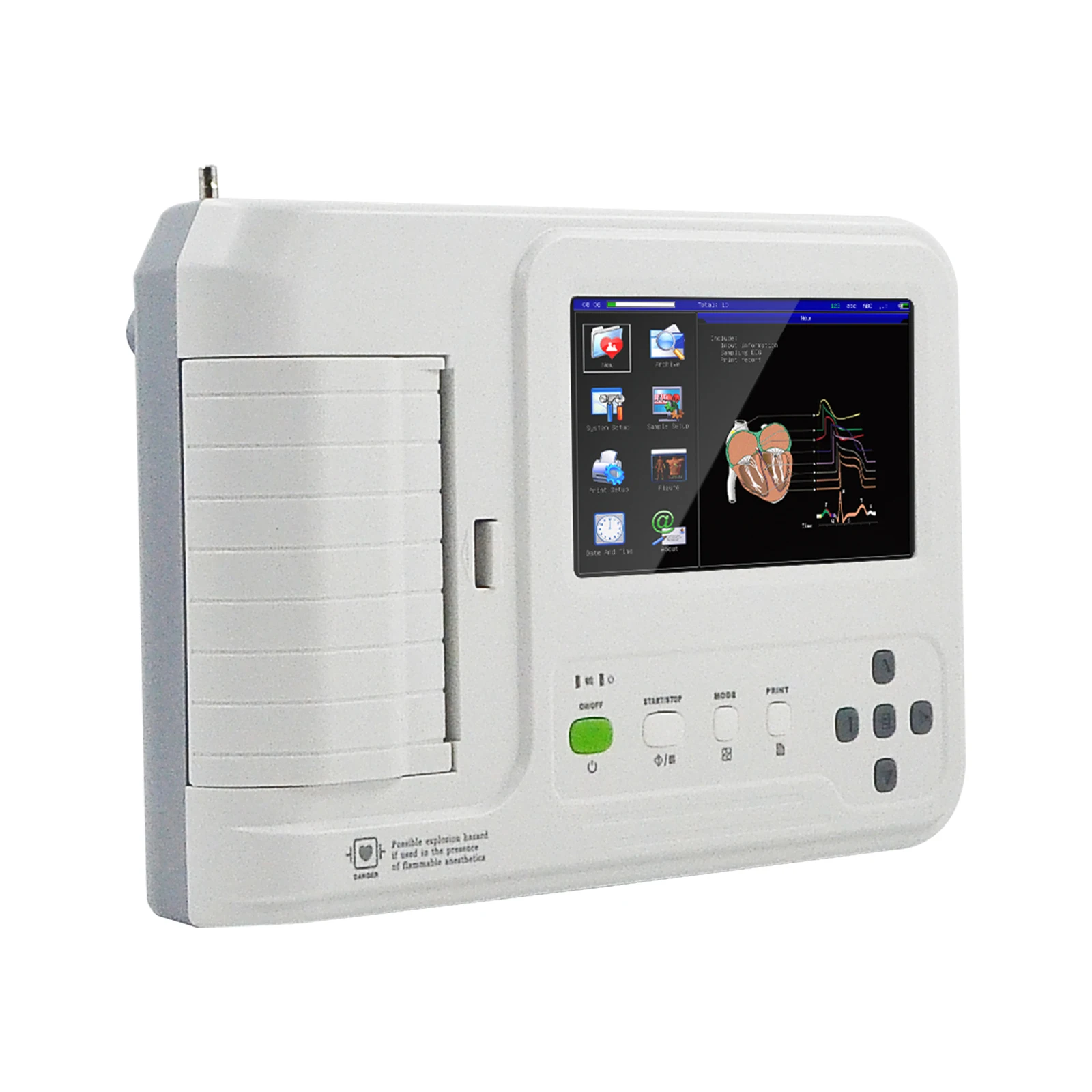

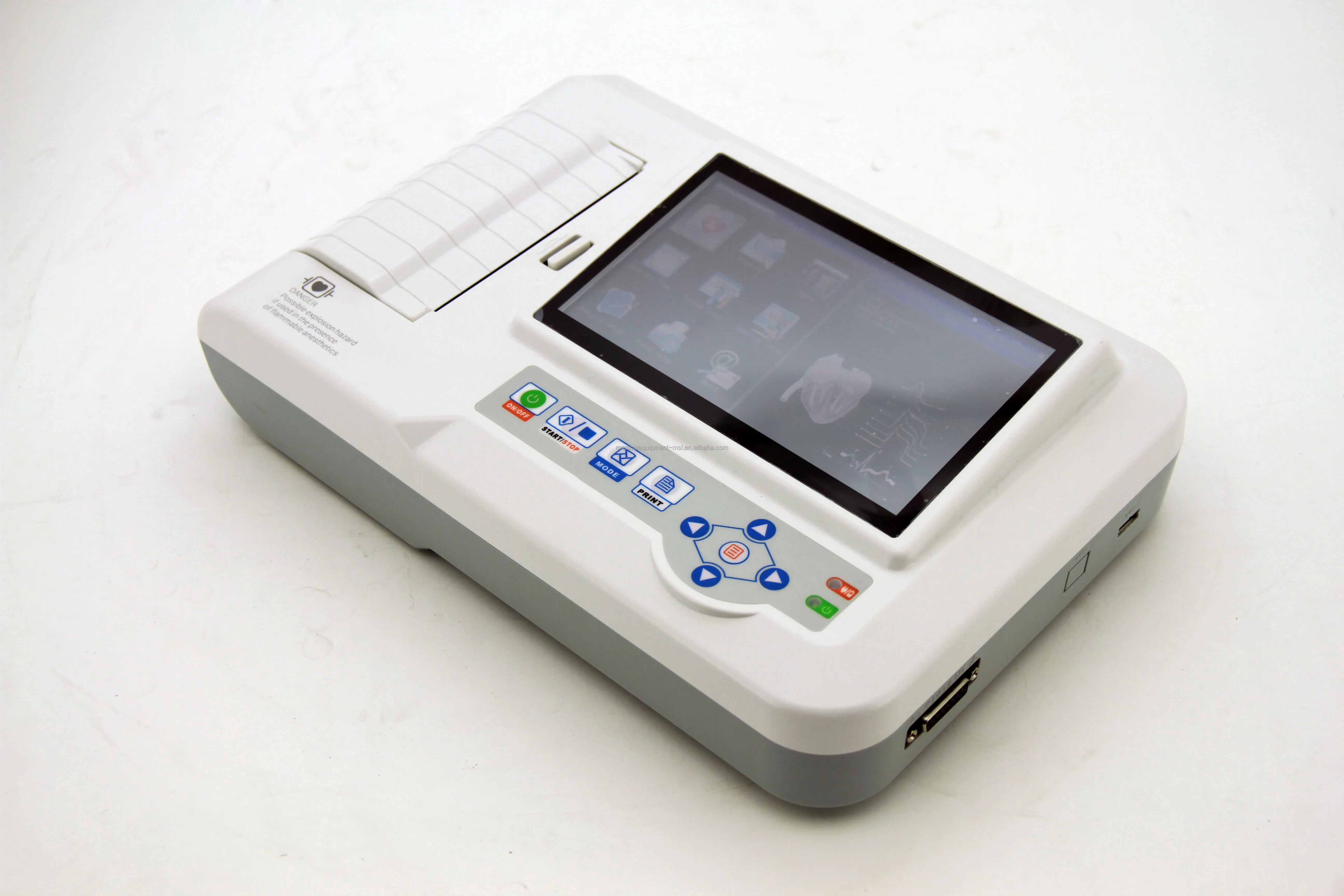

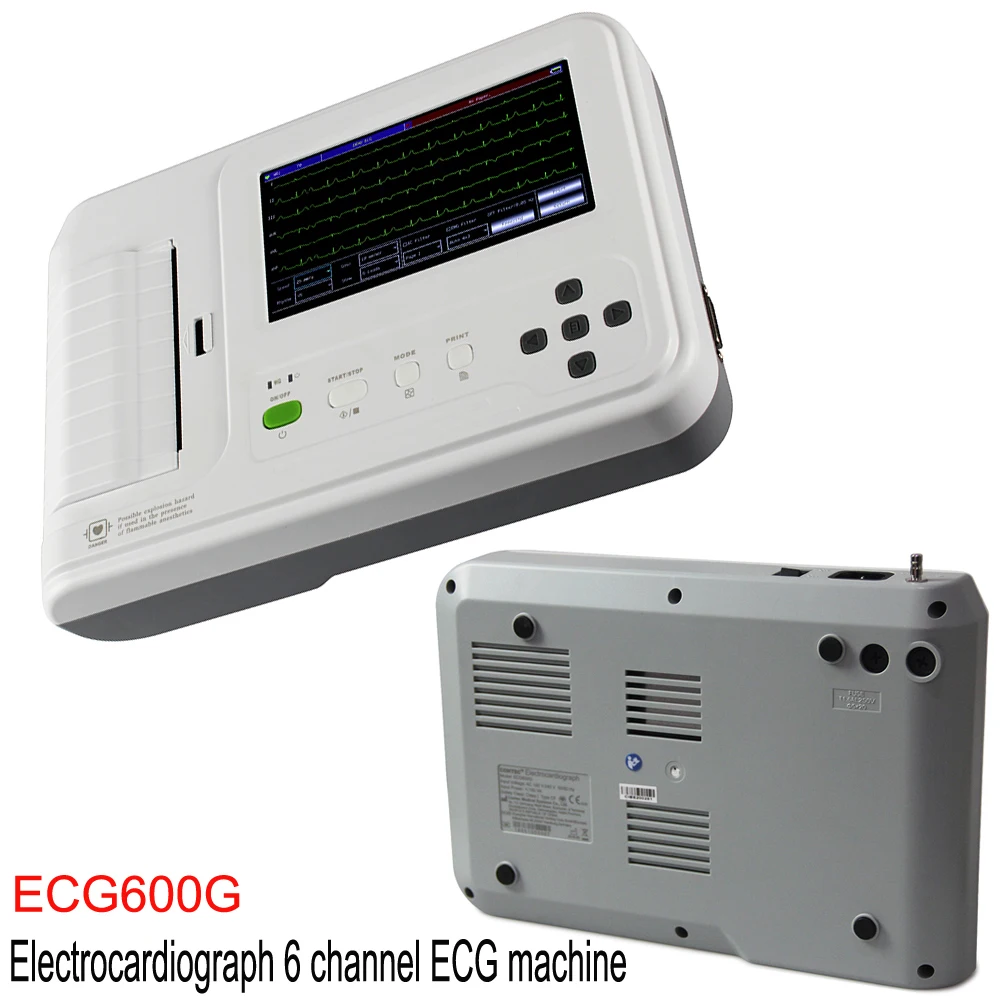

Detailed Images
