Description

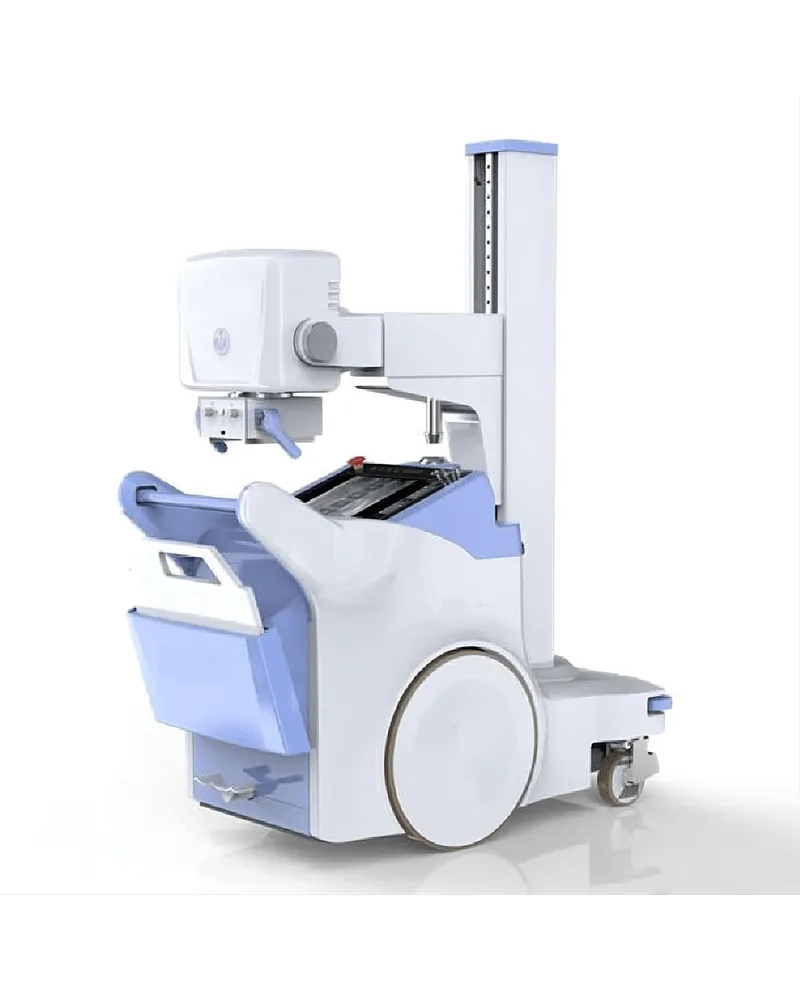

HIGH FREQUENCY MOBILE DIGITAL RADIOGRAPHY SYSTEM
FNX-200MA
Product Usage
FNX-200MA is high frequency combined digital X-ray radiography medical diagnostic
equipment, it is used in radiography department, orthopedics, wards, emergency room, operation room, ICU, etc. It can satisfy the requirement of parts of body such as head,
limbs, chest, spine, stomach, ect.
It can meet all positions to get images when combined with a mobile radiography table (optional)
| Type | Item | Spec |
|---|---|---|
| High frequency X- ray | Max output power | 25kW |
| Main Inverter Frequency | 60kHz | |
| X- ray tube: Focus | Small focus:0.6; Large focus:1.3 | |
| X- ray tube: Rotation anode speed | 3000rpm | |
| Heat capacity | 900kJ (1200kHU) | |
| Tube current | 200mA | |
| Tube voltage | 40-125kV | |
| MAS | 0.4-360mAs | |
| Digital image | Detector | Amorphous silicon detector |
| scintillator | cesium iodide | |
| View | 14″× 17″ | |
| Digital detector: Pixel | 3000×2400 | |
| Digital detector: Max spatial resolution | 3.5Lp/mm | |
| Pixel size | 160μm | |
| Output gray-scale | 16bits | |
| DQE | 75% | |
| Acquisition module | Gigabit nets collection | |
| Image processing model Workstation | Built-in CONTEXTVISION | |
| GOPVIEW XR2 Enhance module | ||
| parameeters choosen according to particular part | ||
| Image information management | Dicom Storage, Dicom Print, Dicom transmission | |
| Physical construction performance | Distance from floor to focus Distance from focus to pillar X-ray Tube components can rotate around the telescopic boom axis Collimator rotate around vertical axis Rotation range of pillar | Max:193cm; Min:73cm |
| Max:122cm; Min:72cm | ||
| ±90º | ||
| ±90° | ||
| 0°~360° | ||
| Power supply | / | 220V± 10% 50/60Hz |
- Highqualitycombined high frequency high voltage generator
- 2. Colorgraphicaltouch LCD control system
- 3. Paneldetectorwith free movement
- 4. HighqualityIPC
- Largesizemedical LCD display
- Newtypemobile column rack
- 7. Symmetricadjustable, wirelessranging rotatable collimator with lamp
- Electricassistancedrive system
- Cableexposurehand brake
- 1 Wirelessremotecontrol exposure device
Basic configuration
X-ray generator
1. 25KW compact x-ray generator;
2. High frequency of 60Khz;
3. With high technology to reduce the radiation;
1. Supers capacitor to supply power in photography and durable life;
2. Li-Battery to supply power in mechanical movement;
Unique Power supply way
Mechanical movement
1. The horizon arm can be contracted freely;
2. The pillar has the electronic up and down movement; and be rotated 360 degree;
3. X-ray tube is rotary and moves left and right with 90 degree;
4. Collimator can be rotated left and right with 90 degree;
5. Comprehensive integration control drive
6. Collimator Rotation Range: ±90 degrees
7. Tube Tilt: -10 to +90 degrees
8. Tube Rotation: ± 180 degrees
Software
LCD touch screen operation panel to control the machine conveniently;
