Description

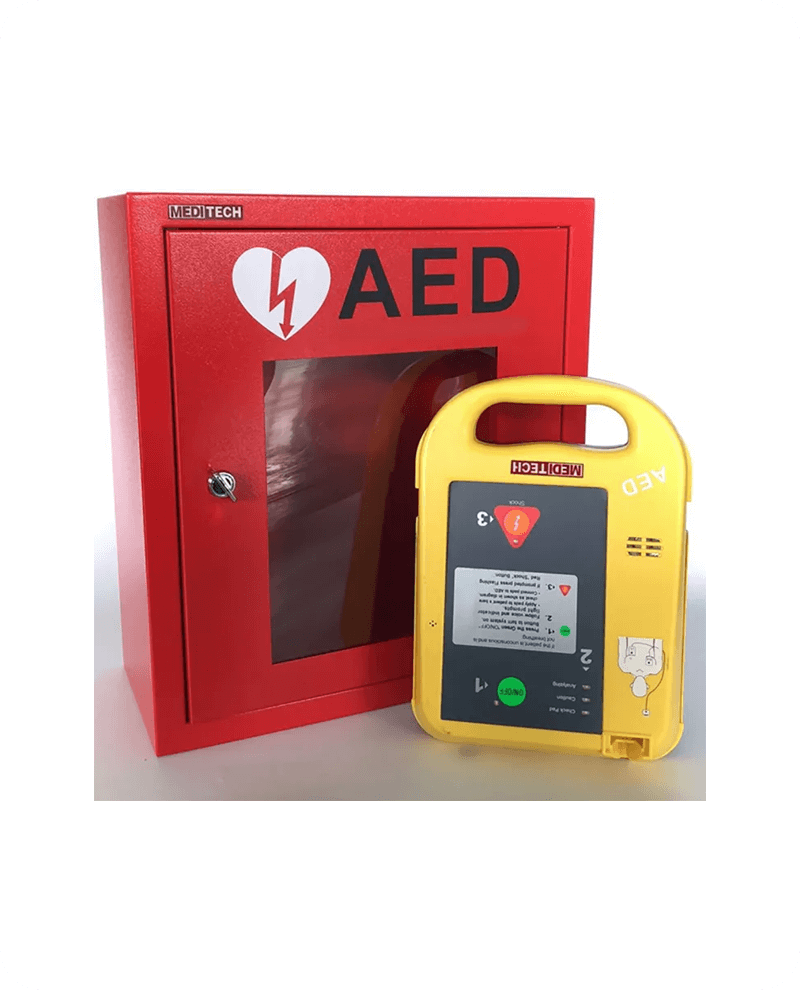

• Automatic External Defibrillator features include:
• Three-step defibrillation process
• Two-button operation
• Extensive voice and visual prompts for the operator
• Biphasic energy output
Category Specification
Dimensions 303 x 216 x 89 mm
Weight 2.0 kg
Operating Temperature 0ºC to 40ºC
Operating Humidity Relative humidity between 30% and 95% (non-condensing)
Storage Temperature
(without battery)
-20ºC to 55ºC
Storage Humidity
(without battery)
Up to 93% (non-condensing)
Electrical Isolation
Power Unit operates on internal battery only
External Electrical Connections No external devices are attached to the unit
Risk Current Category Internally powered equipment with defibrillator-proof BF type patient
applied part (as per definition of IEC 60601-1 standard)
Biphasic Truncated exponential 150, 150, 200J 10 sec. to 150J 15 sec. to 200 J 9 sec. | Less than 30 seconds Less than 35 seconds Less than 25 seconds 22 audible prompts LED prompts Two buttons – On/Off, Shock ±15% into any impedance from 25 to 175Ω .20Ω to 200Ω |
