Description

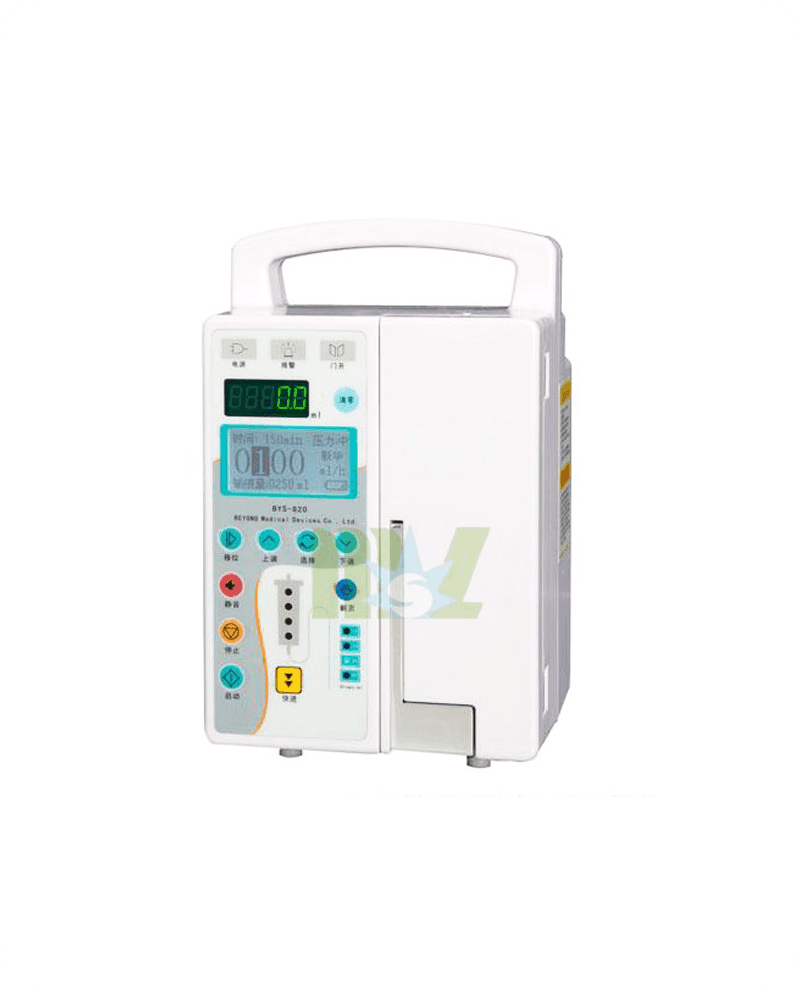

Portable into IV syringe infusion pump & Automatic Infusion Pump (door system) MSLIS09

MSL infusion pump standards MSLIS09

MSLIS09 Best medical high pressure infusion pump in China

Specification of high pressure infusion pump MSLIS09

1.Bubble detector and pressure sensor can precisely detect tube air bubbles

2.Unique Voice Alarm system and accurate injection rate make the injection process safer and more reliable.

3.HD LCD display working status.

4.Have store many brands IV sets,Automatically calibration and compatible with any brand infusion sets.

5.Work mode: ml/h and drop/min, and these two modes can switch freely.

6.KVO and Bolus functions.

Unique Human Voice Alarm system	The device triggered the human voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable.
Rate:	1ml/h~1,200ml/h
Flow Rate Accuracy:	Within ±5% (after correct calibration)
Mechanical precision:	Within ±2%
Purge Rate:	100ml/h~1,000ml/h (100 ml/h step)
Infusion Volume:	1ml~9999ml
Total Infusion Volume:	0.1ml~9999.9ml
KVO rate:	1ml/h~5 ml/h (1ml/h step)
Occlusion:	High: 800mmHg ±200mmHg (106.7kPa±26.7kPa
	Medium: 500mmHg ±100mmHg(66.7kPa±13.3kPa
	Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa )
Alarms:	End of injection, occlusion, door open, bubbles in the tube, wrong setting, low battery, AC power pulled out etc.
Power Source:	AC 100V~240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
Bubble detector:	Ultrasonic wave detector; detection sensitivity ≥25μL
Fuse:	F1AL/250V, 2 pc inside
Power Consumption:	30VA
Operating Condition:	Ambient temperature: +5℃~+40℃;
	Relative humidity: 20~90%
	Atmospheric pressure: 86.0kpa~106.0kpa
Transport & Storage Condition:	Ambient temperature: -30℃~+55℃
Transport & Storage Condition:	Relative humidity: ≤95%
Equipment Classification:	Class I, internal power supply, Type CF
